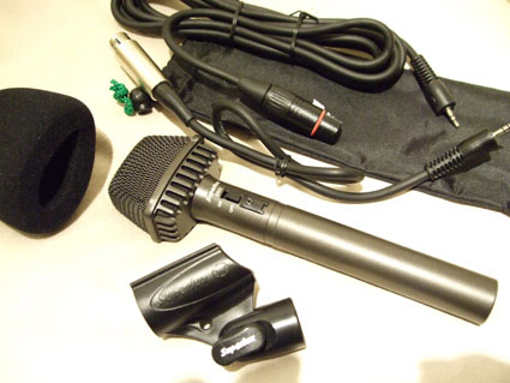

SUPERLUX E522/B XY StereoBroadcast / Field Recording Condenser Microphone ( Battery Powered) + XLR to Stereo 3.5mm Jack Lead x 2

SUPERLUX E522/B XY StereoBroadcast / Field Recording Condenser Microphone ( Battery Powered) + XLR to Stereo 3.5mm Jack Lead x 2

Handheld X/Y stereo condenser, unbalanced

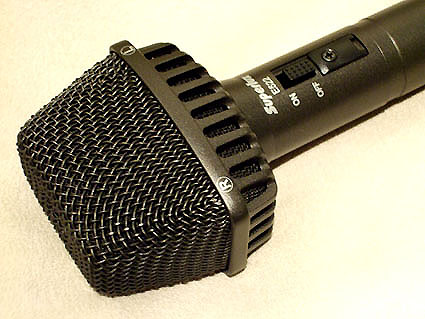

The E522/B is an X/Y stereo microphone for live field recording. Equipped with a closely matched pair of capsules it captures the spatial impact and realism of any sound environment. It is especially suited to consumer and amateur recording. With a single 3.5mm stereo output lead, the E522/B works seamlessly with consumer audio and video equipment.

Features

* Fixed-charge back plate, permanently polarized condenser
* X/Y Stereo field
* Frequency response 30~20,000Hz
* Low frequency roll-off 150Hz, 6dB/oct
* Sensitivity -47dBV/Pa (4.4 mV/Pa) at 1kHz
* Impedance 200 ohms, unbalanced
* Flat and roll-off switch
* Signal-to-noise ratio 70dB, 1kHz at 1 Pa
* Max SPL 126dB (T.H.D = 1% 1000Hz)
* Dynamic range 102dB, 1kHz at Max SPL
* Power 5-52V DC, 2 mA (each channel)
* Battery type 1.5V AA/UM3
* Battery current/life 2mA/1000 hours typical
* Output connecter: integral 3-pin XLR-M
* Cable 3m, 3-pin XLR-F to 3.5mm stereo jack
* Cable 0.5mm, 3-pin XLR-F to 3.5mm stereo jack
* Dimensions 64(D) x 218(L)mm
* Weight 300g
