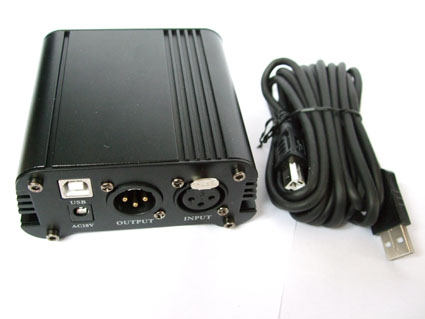

The UPM-1 is a 48V DC Phantom Power Supply with the
addition of a USB output to enable any phantom powered
microphone to be connected directly to a computer.

Supplied with Power Adapter and USB cable.

SPECIFICATION

*  Input power:  18v AC
*  XLR microphone input:  48v phantom power
*  XLR output:  Analogue signal
*  USB output: no additional drivers required
*  16 bit A/D converter
*  Signal to Noise:  84dBA (44.1KHz Gain=0dB)
*  Preamplifier:  20dB
*  5 sampling frequencies: 8KHz, 11.025KHz, 22.05KHz, 44.1KHz, 48KHz.
*  Compatible with:  Win98, WinME, Win2000, WinXP.
